W
e have developed a concept called 'Design to Site' along with
'Ace Technologies, Bengaluru'.
This methodology helps in better planning resulting in quicker
construction with far better quality than normal construction methods.
As part of this
Design to Site concept, we have also developed certain tools that help in making construction better, faster and quality oriented.
About Masonry
Masonry has been one of the popular construction methods available for
the ages. Masonry is simply the art of laying brick or block with mortar
in between. Traditionally, it has been exploited for beauty and its
integrity in construction. Clay bricks and Stone blocks have been used
for thousands of years in the construction of monuments, temples,
palaces and many other structures. Masonry has proven its durability
even in earthquake situations.
Examples of masonry structures are the Qutb Minar, Meenakshi Temple
Gopuram, Gol Gumbaz and many other structures all over the world. The
modern avatar of the traditional masonry block has been the Concrete
Masonry Block, commonly called as EMU (Engineered Masonry Unit). Blocks
can be solid or hollow. Both are load bearing.
The block of choice is the Hollow Engineered Load bearing Block which
can be used to build upto six storeys without the need of a framed
Column and Beam structure. This modern innovation has changed the way of
construction in the Western world and now we have the opportunity to
present it to you in India. This is especially useful keeping in mind
the present situation where labor is expensive and cost of construction
is going up everyday.
Ace Technologies have been promoting the adoption of Block Masonry in construction which has many advantages over conventional construction technologies followed in India. The biggest advantages are:
- Faster Construction
- Reduced Manpower requirement due to higher efficiency
- Less costs compared to conventional methods
- Professional, Tool driven approach. Blocks yield to cutting/drilling tools, provides a very professional and quality finish.
- Reduces dependence on Skill. Quality of blocks help in doing better work.
- Structural Flexibility in planning stage
- No need for plastering of walls
- Ability to erect pillars (regular/concealed inside wall) at will
- Beams are also made using blocks! Reduces overall construction, curing time and provides excellent finish.
- More earthquake proof by design.
- Well planned construction. No need to tear up walls for installing electrical ducting etc.
 |
| Plinth beam on top of foundation laid using U-Blocks (Lintel blocks) |
 |
| Plinth beam after casting. |
 |
| Construction of walls using masonry blocks |
 |
| Window Sill area ensured to not have hollow blocks. |
 |
| Blocks yield very well for cutting/drilling tools! Professional and better finish can be achieved despite not plastering the walls. |
|
 |
| Well Planned execution: Electrical Fixtures are installed during laying of course! No need to tear built up wall and plaster t later! Doing things in a more planned way and with less cost. |
 |
| Concealed Pillars inside walls! |
 |

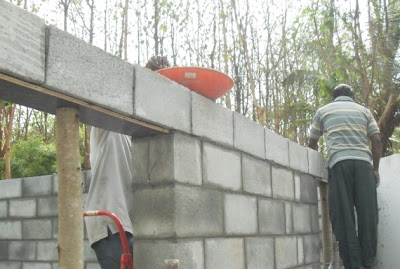

| Lintels and beams are built using blocks. Special type of blocks called U-Blocks are used to make lintels and beams! |
 |
| Lintel setup for casting. |
 |
| Casting of Lintel! |
 |
Running lintel all round the wall ready for casting.
 |
| Blocks guaranteed with 'M9' strength, strong to be used as support for beams and centering. Same blocks can also be used even for foundation. |
|
 |
| Tools used to apply mortar on top of blocks precisely, without wastage and simultaneously increasing productivity on site. |
 |
Precise
and Highly consistent Mortar laying between each course of blocks!
Reduces wastage of mortar and also increase productivity at the site.
'Design to Site' concept
In this effort, we convert designs into 3D Models and eventually into '3D Block models'. The block model is optimized to block sizes and heights, so it completely eliminates or reduces to a minimum, the block related work on site.
 |
| A typical conventional plan! |
 |
| Conventional Plan turned into 3D Drawing |
 |
| Blocks
Model: 3D Model optimized for masonry block based construction! Color
code helps masons and workers understand the concept better. |
 |
| Bill
of Material generated from the Blocks model of the plan. Color coded
blocks ensure masons and workers can understand the concept. |
Tools to help improve implementation of new technologies in construction and on site
We have developed some tools along with Ace Technologies, for improving the way things are done in a construction site. We have developed a set of different tools, which greatly improve quality, reduce effort and provide a more consistent, uniform and better bonding between blocks in site. We are working with Ace Technologies on more such technologies to help do construction more professionally and in an easy way.
